Double Layer Trapezoidal Roof Manufacturing Machine

Product Details

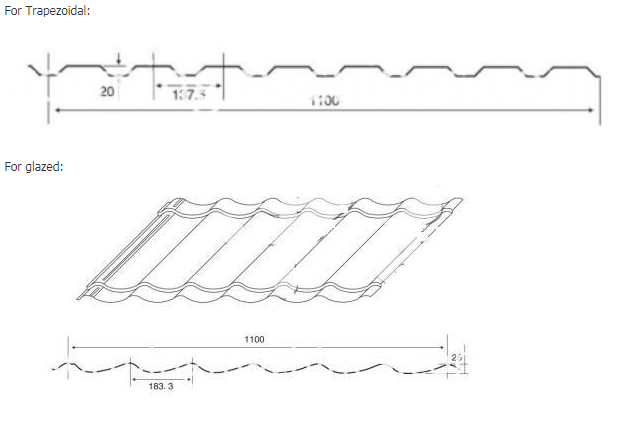

Drawings profile of roof tile:

ⅡMaterials:

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness: 0.4- 0.8 mm

Formed width:1250 mm

Forming speed: 8-12 m/min (trapezoid layer) , 3-4m/min (glazed layer)

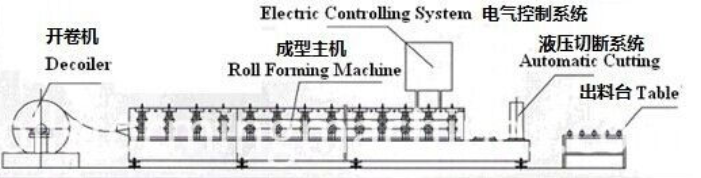

Ⅲ Production process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→

Step formed→ Auto cutting→Products receiving

Trapezoid layer:

Glazed layer:

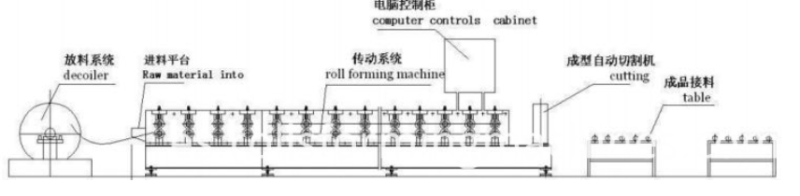

ⅣComponents of production line

No.NameUnitQty
1Decoiler 6 tonsset1
2Main forming machineset1
3PLC control systemset1
4Hydraulic pump stationset1
5Post cutset1
6Electric motorset1
7Output tableset1

ⅤDetailed introduction of every part for this production line

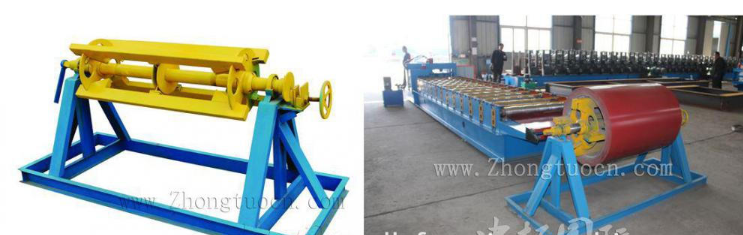

1.Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacityUncoiling widthInner diameter
5T1250mm450-550mm

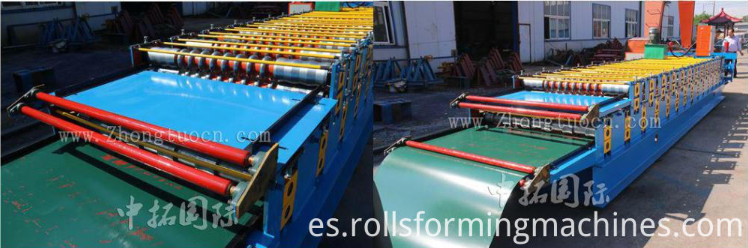

  1. Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat,

parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

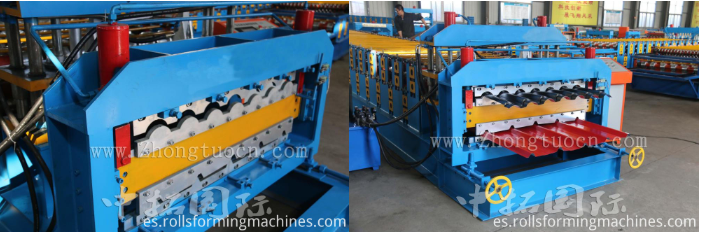

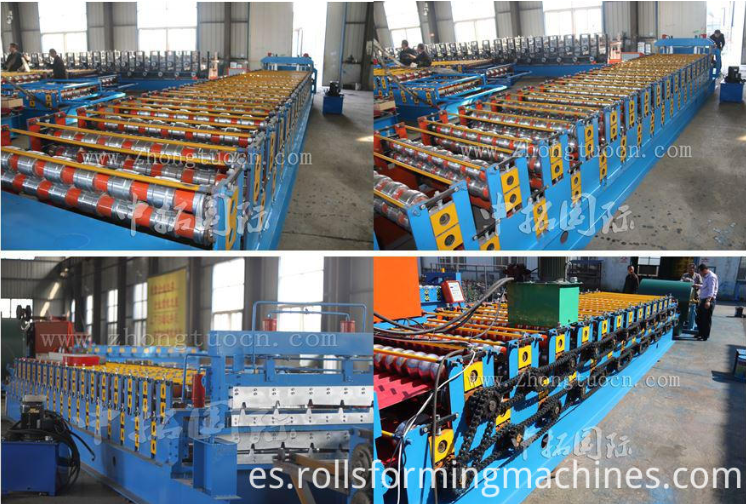

  1. Main Roll Forming System

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive,chain transmission,

roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.

No.Main parameter
1Length of the main partAbout 8500х1650х1500mm
2Weight of main partAbout 6.5 t
3Voltage380V/50HZ3Phase (as customer`s request)
4Roller fixerMiddle plate welded
5Frame350 H steel welded
6Frame thickness20mm
7Drive modeChain
8Material of rollers45# steel, surface hard chromium plating.
9Material of shafts45# steel
10Diameter of shaftsΦ80mm
11Number of rollersUp layer: 13 rollers

Down layer: 15 rollers

14Main power5.5kw

4. Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.

(include cutting tools, hydraulic tank, cutter machine)

Blade MaterialCutting system
Cr12 quenchedFull automatic

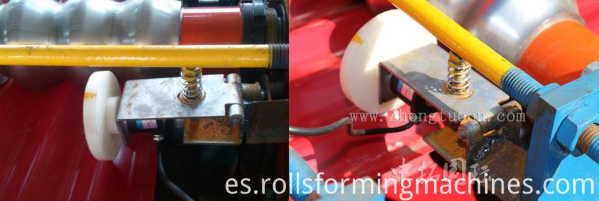

  1. Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement.

6.Products receiving tables

  1. It adopts welded steel and supported roller to transmit the products.
  2. 3*0.9*0.6m

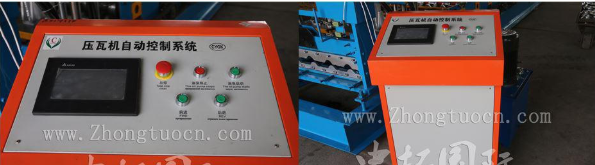

  1. Controlling device

1) Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with

stability, precision and lifetime.

2) Other electric element are Delta

3) Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

ScreenPLC
Text screen displayerTaida DVP14ES from Taiwan

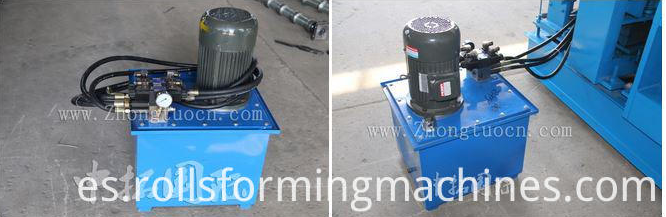

  1. Hydraulic

(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )

OriginPower
Advanced hydraulic system from Taiwan3kw

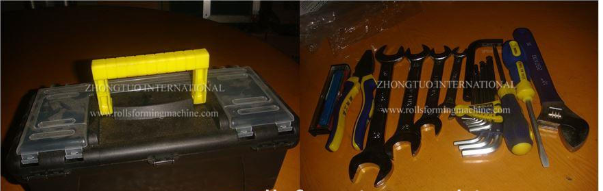

Ⅳ Spare parts ( for free)

  1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
  2. Rubber mat 1 pcs;
  3. Bolt spanner 1 pcs

Ⅴ Remarks

Payment terms30% T/T in advance and balance 70% after inspection confirmation before shipment.
Deliverywithin 45 working days after receipt of deposit.
PackingNude packing with 1*40HQ container
WarrantyOne year, and we will provide the technical support for the whole life.
Installation1.Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50 / person/day for salary.

2. Need one technician

3. Training time: one week (contains the time of installation and adjustment)
