Drywall Light Steel Keel C U Channel Roll Forming Machine

Product Details

Drywall Light Steel Keel C U Channel Roll Forming Machine

Support you money !! Support you service !! Support you technology !!

PLC control system !! Hydraulic cutting system !! Mult-language conversion system !!

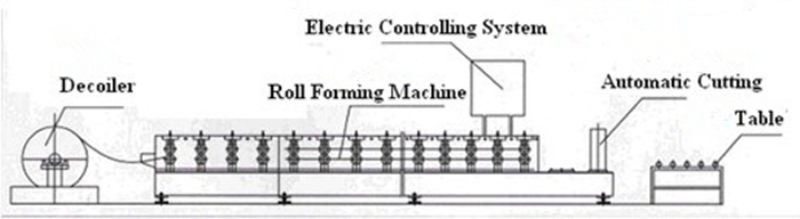

Drywall Light Steel Keel C U Channel Roll Forming Machine

Drywall Light Steel Keel C U Channel Roll Forming Machine Decoiler System:

Usage: Passive uncoil pulled by roll forming system, support the steel coil and uncoil it in a turntable way.

No :Decoiler System Main Parameter :
1Loading capacity1.5T
2Uncoiling width300mm
3Inner diameter450-550mm

Drywall Light Steel Keel C U Channel Roll Forming Machine

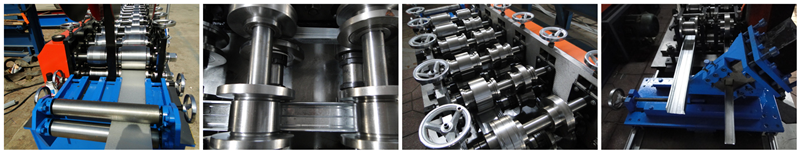

Drywall Light Steel Keel C U Channel Roll Forming Machine Roll Forming System:

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission, roller surfaces polishing, hard plating , heat treatment and galvanizational treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

No :Roll Forming System Main Parameter :
1Length of the main partAbout 3000mm*1000mm*400mm
2Weight of main part3 tons
3Voltage380V/50HZ3Phase (as customer`s request)
4Roller fixerguide column
5Framesteel plate welded/ Memorial arch frame type
6Frame thickness25mm
7Drive modegear
8Material of rollersGCr12MoV
9Material of shafts45# steel with tempering
10Diameter of shaftsφ40mm
11Number of rollers10 rollers
12Main power3kw

Drywall Light Steel Keel C U Channel Roll Forming Machine

Double working lines on the machine to finish the two profiles. Change the feeding unit to make another profile, the cutting head can move left and right by hand!

Drywall Light Steel Keel C U Channel Roll Forming Machine Automatic Cutting System:

Feature: Automatic cutting controlled by PLC. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. It contains one set of cutting tools, one hydraulic tank and one cutter machine. Hydraulic station is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

No :Cutting System Main Parameter :
1Material of bladesGcr12MoV quenched
2Power supplyhydraulic power
3FramePillar style with rack & pinion system
4Stroke switchnon-contact photoelectric switch
5Hydraulic motor Power3kw
6Hydraulic oil:46#

Drywall Light Steel Keel C U Channel Roll Forming Machine

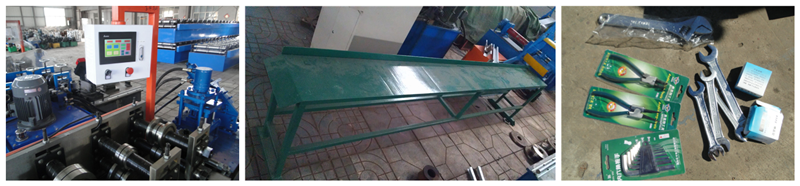

Drywall Light Steel Keel C U Channel Roll Forming Machine Electric Control System:

1. Adopted PLC , transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2. Other electric element are Delta.

3. Equipped with movable switch , air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Drywall Light Steel Keel C U Channel Roll Forming Machine Products receiving table:

It adopts welded steel and supported roller to transmit the products.

Drywall Light Steel Keel C U Channel Roll Forming Machine

Drywall Light Steel Keel C U Channel Roll Forming Machine Our Service:

1. Installation and training of machine manufacturer:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of roll forming machine for sale:
a. One year guarantee for whole roll forming machine for sale.
b. 24 hours technical support by email or calling:
c. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.

Drywall Light Steel Keel C U Channel Roll Forming Machine Company Information:

Cangzhou Zhongtuo International Trade Co., Ltd is a professional manufacturer located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
