Glazed Roof Tile Roll Former Construction Tile Forming Machine

Product Details

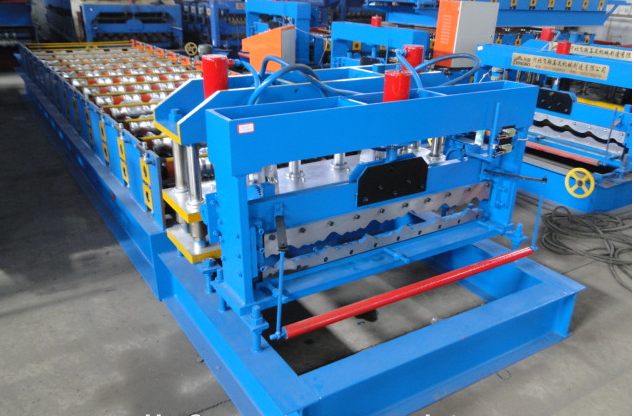

Glazed Roof Tile Roll Former Construction Tile Forming Machine

Glazed roof tile roll former is a kind of construction tile forming machine widely used by all kind of production factory made roof and wall tile for

factories, residential, hotels, villas and other industrial and civil construction

Machine DescriptionQtyDelivery timeContainer

Type

Price
Glazed Tile Roll Former1 SET30 working days

After receiving deposit

One 40GPFOB Tianjin 15500

USD



Glazed Roof Tile Roll Former Construction Tile Forming Machine Production process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→Step formed→ Auto cutting

→Products receiving

Components of production line

No.Glazed Roof Tile Roll Former Construction Tile Forming MachineUnitQty
1Manual decoilerset1
2Main forming machineset1
3PLC control systemset1
4Hydraulic pump stationset1
5Step-formed mechanismset1
6Post cutset1
7Electric motorset1
8Output tableset1

Production parameters

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness:0.3- 0.8 mm

Material hardness:195 mpa---350 mpa

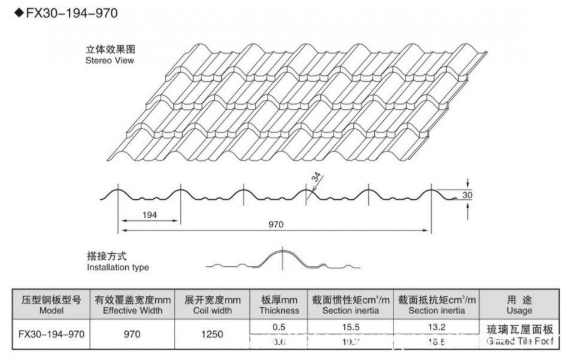

Material width:1250 mm Wave length:194 mm

Formed width: 970 mm Step height: 30 mm

Step length:150 mm---380 mm(adjustable) Forming speed:4 m/min

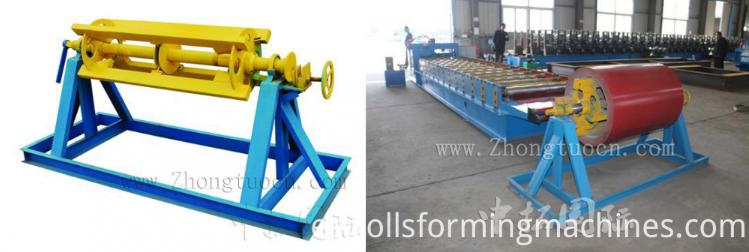

Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacityUncoiling widthInner diameter
5 T1250 mm450-550 mm

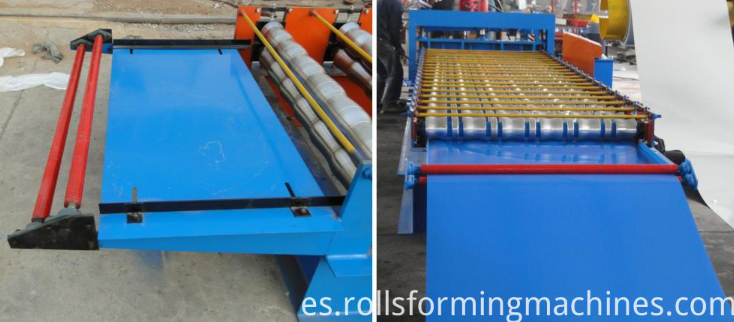

Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and

process,it can guarantee that the products are neat, parallel and everything is

uniformity.Please refer to the equipment regulation to know the function of locate

angle iron.

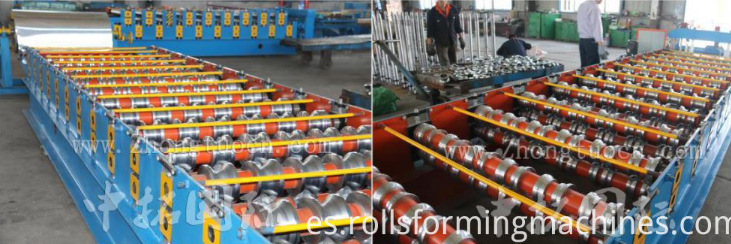

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer

drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not

easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.

No.Main parameter
1Length of the main part7500*1650*1500mm
2Weight of main part4.5T
3Voltage380V/50HZ3Phase(as customer`s request)
4Roller fixerMidddle plate welded
5Frame350 H steel welded
6Frame thickness16mm
7Drive modechain
8Material of rollers45#steel, surface hard chromium plating
9Material of shafts45#steel
10Diameter of shaftsΦ80mm
11Number of rollers13rollers
12Main power5.5kw

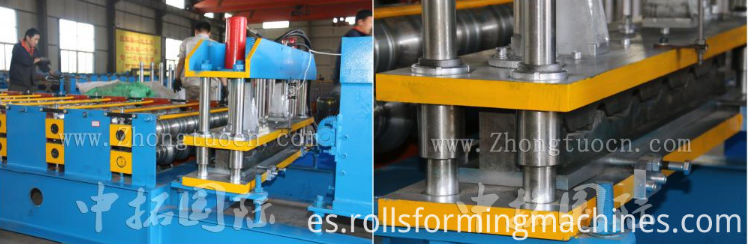

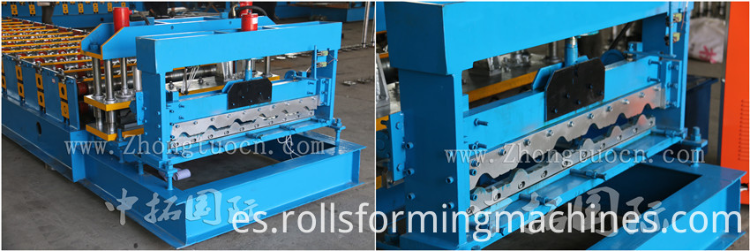

Step-formed mechanism

Blade MaterialFeature
Cr12 quenchedIt is used to make the step,the glazed tile`s final formed

Shearing Mechanism

Advanced hydraulic drive, automatic punching and cutting after forming, no

distorting or wasting, high level safety factor.

(include cutting tools, hydraulic tank, cutter machine)

Blade MaterialCutting system
Cr12 quenchedFull automatic

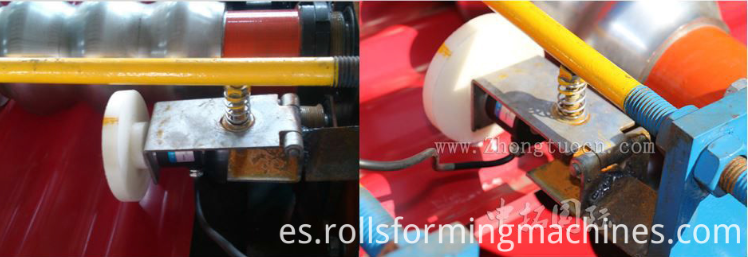

Counter

One counter gauges length, pulses, and decides length. Omron encoder for length

Measurement.

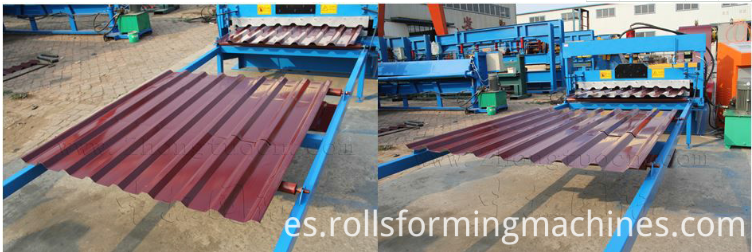

Products receiving tables

  1. It adopts welded steel and supported roller to transmit the products.
  2. 3*0.9*0.6m

Controlling device

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with

stability, precision and lifetime.

2.Other electric element are Delta

3.Equipped with movable switch, air break, radiator, transformer & electric leakage

protector for operation convenience and safety.

ScreenPLC
Text screen displayerTaida DVP14ES from Taiwan

Hydraulic

(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And

two sets of electromagnetism valves )

OrginPower
Advanced hydraulic system from Taiwan5.5 kw

Spare parts ( for free)

  1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
  2. Rubber mat 1 pcs;
  3. Bolt spanner 1 pcs
Remarks
Payment

terms

30% T/T in advance and balance 70% after inspection confirmation before shipment
Deliverywithin 45 working days after receipt of deposit.
PackingNude packing with 1*40GP container
WarrantyOne year, and we will provide the technical support for the whole life
Installation1.Training: the buyer should charge of visa, return ticket, food and accommodation

overseas and USD50/person/day for salary.

2. Need one technician

3. Training time: one week (contains the time of installation and adjustment)
