Good Configuration High Quality Single Layer Trapezoid Roll Forming Machine

Product Details

Good Configuration High Quality Single Layer Trapezoid Roll Forming Machine

Machine DescriptionQtyDelivery timeContainer TypePrice

FOB Tianjin

FX28-202-1010 Tile Forming Machine1 SET40 working days

after receiving deposit

One 40 GP32000 USD

Drawings profile:

Good Configuration High Quality Single Layer Trapezoid Roll Forming Machine

Production process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting

→Products receiving

Good Configuration High Quality Single Layer Trapezoid Roll Forming Machine

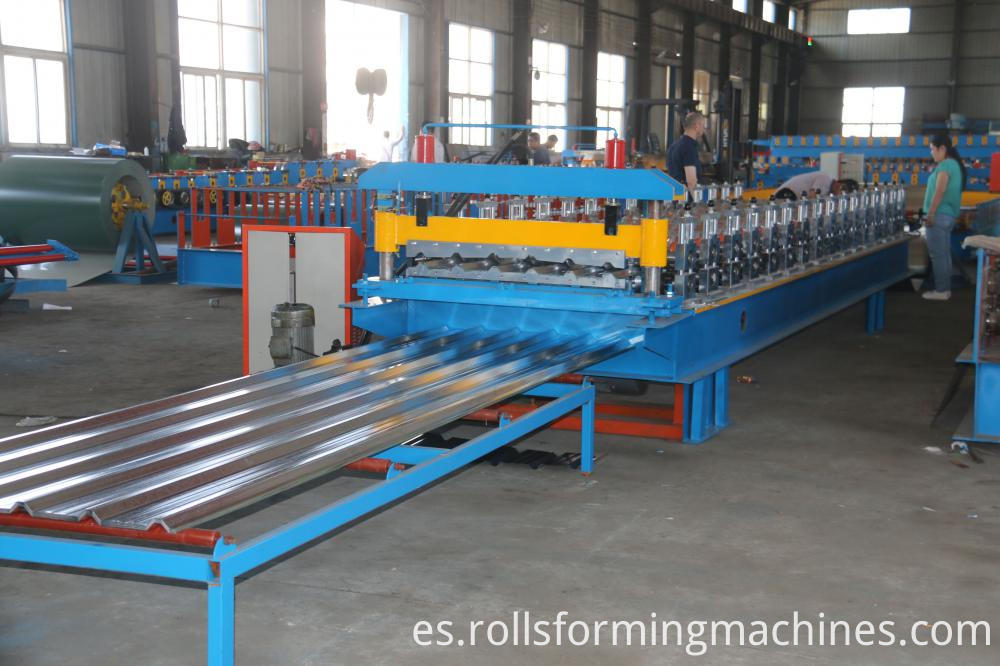

Components of production line

No.NameUnitQty
1Hydraulic decoiler for 5 tonsset1
2Main forming machineset1
3PLC control systemset1
4Hydraulic pump stationset1
5Post cutset1
6Electric motorset1
7Output tableset1

Production parameters

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness: 0.25-0.60 mm

Material hardness: 245 mpa---350 mpa

Material width: 1220 mm

Formed width:1010 mm

Wave length: 202 mm

Wave height: 28 mm

Forming speed: 15 m/min

Un-coiler System

Usage:Hydraulic expanding and being inwards tight during feeding.

Automatically feeding driven by electric motor

Good Configuration High Quality Single Layer Trapezoid Roll Forming Machine

Main parameter
Coil inner diameter450-550 mm
Max coil out diameter1300 -1600 mm
Max coil width1250 mm
Carrying capacity5 Tons
Hydraulic power3 kw
Drive power3 kw
Size2.7*1.3*1.8 m(L*W*H)

Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the

products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the

function of locate angle iron.

Good Configuration High Quality Single Layer Trapezoid Roll Forming Machine

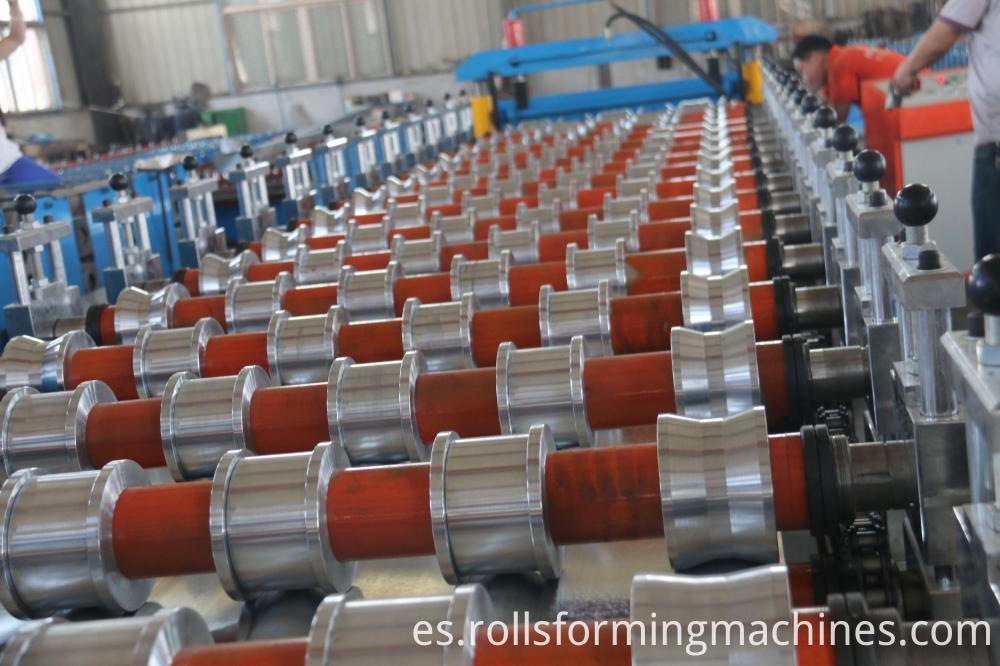

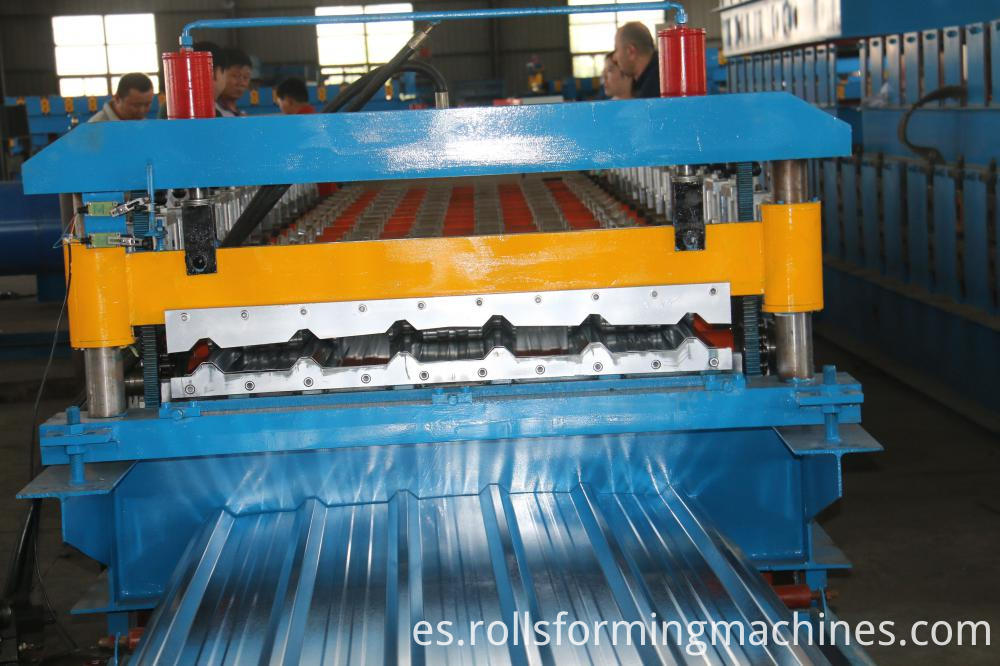

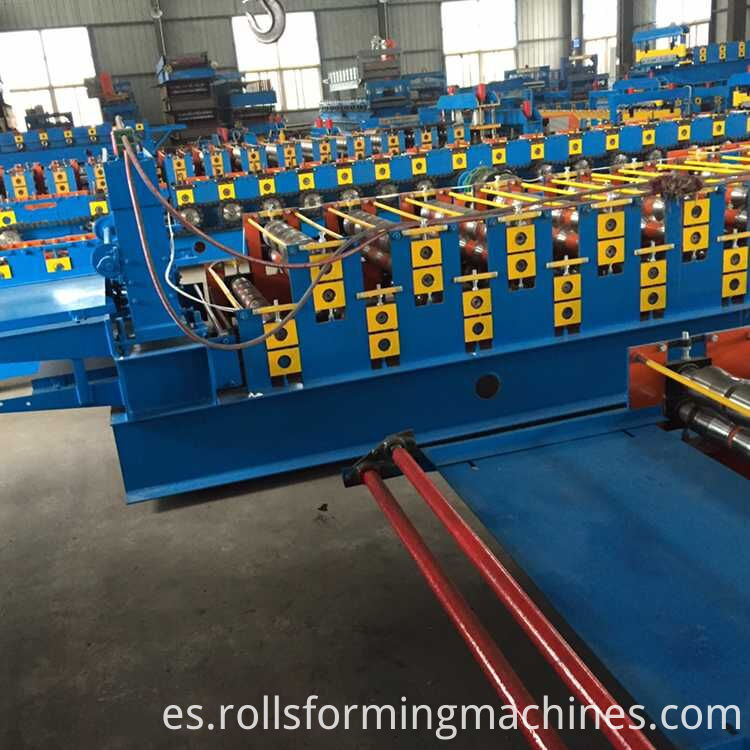

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked

when it is working

Feature : Ensure stability , precision and lifetime.

Good Configuration High Quality Single Layer Trapezoid Roll Forming Machine

No.Main parameter
1Length of the main part8500 * 1450 * 1450 mm
2Weight of main part5.5 t
3Voltage380 V/ 50 HZ 3 Phase (as customer`s request)
4Roller fixerPillar type
5FrameGuide pillar and the thickness is 50 mm
6Frame thickness25 mm
7Drive modeGear
8Material of rollers45# steel, surface hard chromium plating.
9Material of shafts45# steel
10Diameter of shaftsΦ 80 mm Solid shafts
11Number of rollers15 rollers
14Main power5.5 kw
15AC motorsEither ABB or Siemens

Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety

factor.(include cutting tools, hydraulic tank, cutter machine)

Blade MaterialCutting system
Cr12 quenchedFull automatic

Good Configuration High Quality Single Layer Trapezoid Roll Forming Machine

Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement.

Good Configuration High Quality Single Layer Trapezoid Roll Forming Machine

Products receiving tables

1. It adopts welded steel and supported roller to transmit the products.

2. 3 m*2 (normally for the air cylinder, we provide a famous Chinese brand,but if you want the Festo or SMC, we also can provide, but the price will change)

Good Configuration High Quality Single Layer Trapezoid Roll Forming Machine
